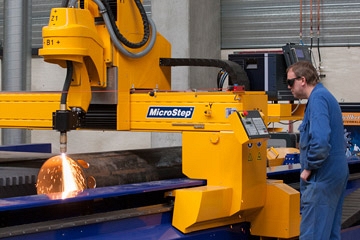

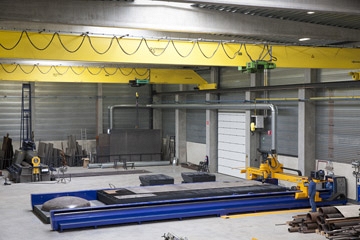

Plasma table 12x4 m

The plasma table, which has been operational since March 2013, has the following characteristics:

  • Cutting surface: 12x4 m for sheet, cutting thickness up to 120 mm of which 50 mm without infeed
  • source Kjellberg 440A type hiFocus 440 i
  • cutting of tubes up till diam 700 mm
  • cutting of dished head up to diameters of 4000 mm

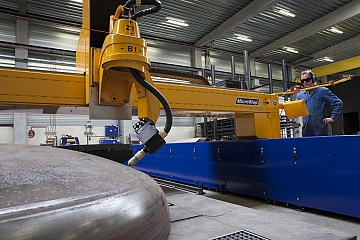

  • equipped with endless rotating 3D head
  • oblique cutting edges / welding preparation up to 50°
  • gantry is driven by a precision linear guide system

Guillotine shears max. 6 meters x 20 mm plate thickness
