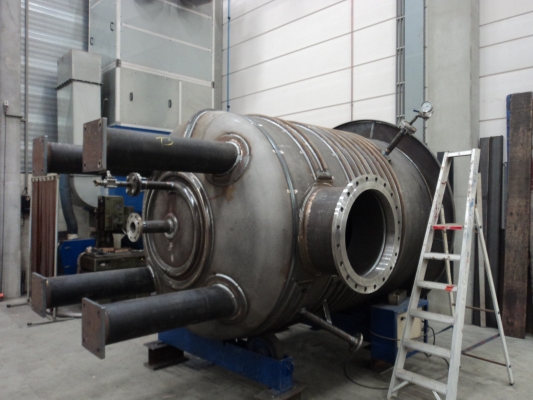

The attached photos show a recently manufactured pressure vessel consisting of boiler steel plate with halfpipe. Part of the vessel was assembled using the submerged arc welding process, while the remainder was manually welded.
A half coil jacket is made by welding a half pipe around the vessel. A plug flow with a heat transfer fluid passes through this pipe, allowing for a fast and uniform regulation of the vessel temperature.
